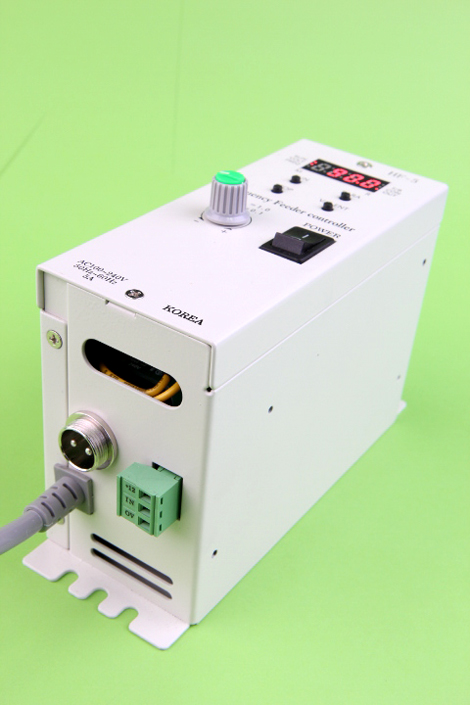

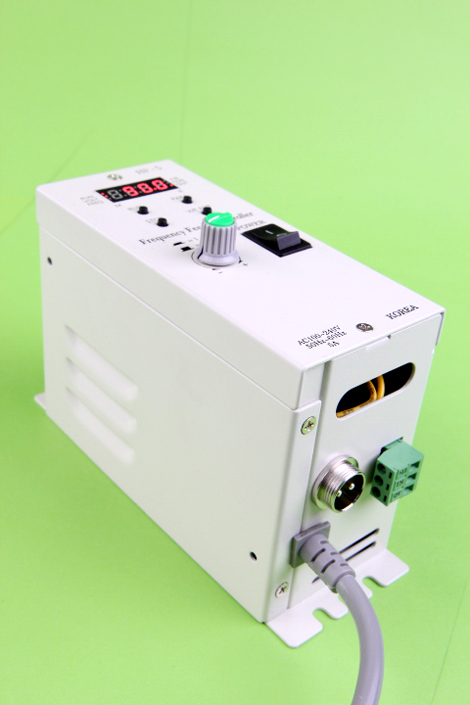

Frequency controller
HF02 / HF04 NF-5 / NF-10HF-3 / HF-5
본문
Features
- Power Supply Voltage : AC100V ~ AC240V
- Sensor Voltage : DC12V, 400mA

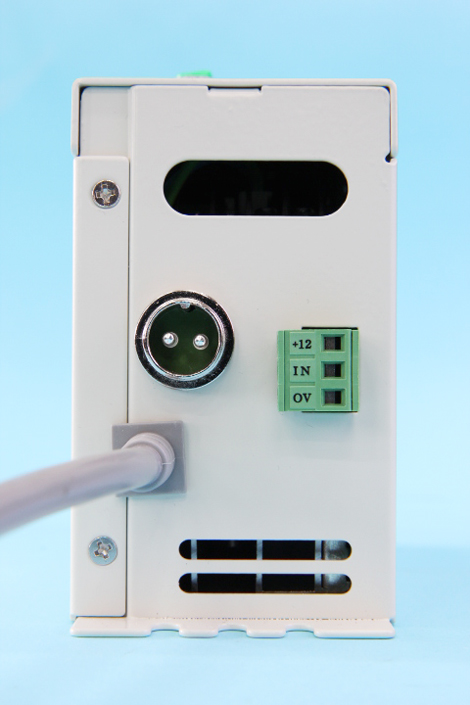

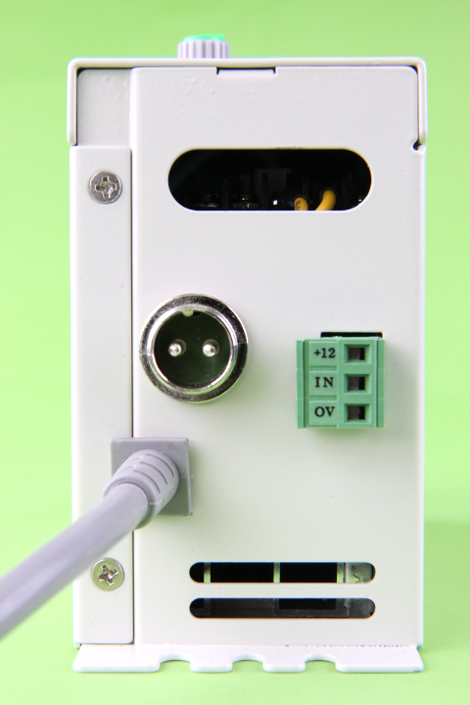

- Control Signal : COM and IN Terminal short (No-Voltage contact or TR)
- Auxiliary Relay : A.B.C Output contact

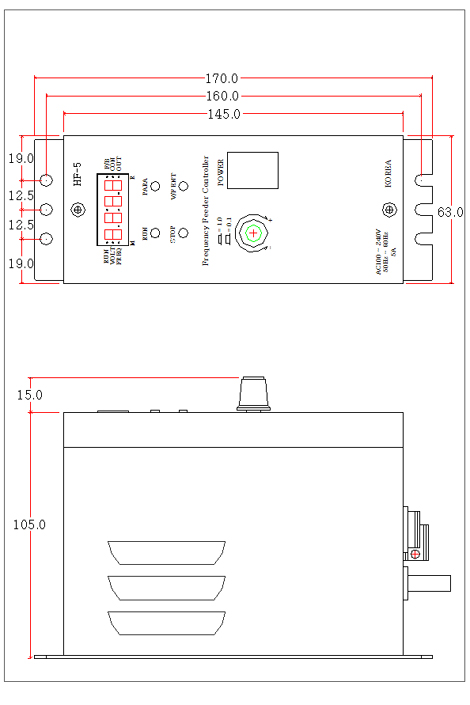

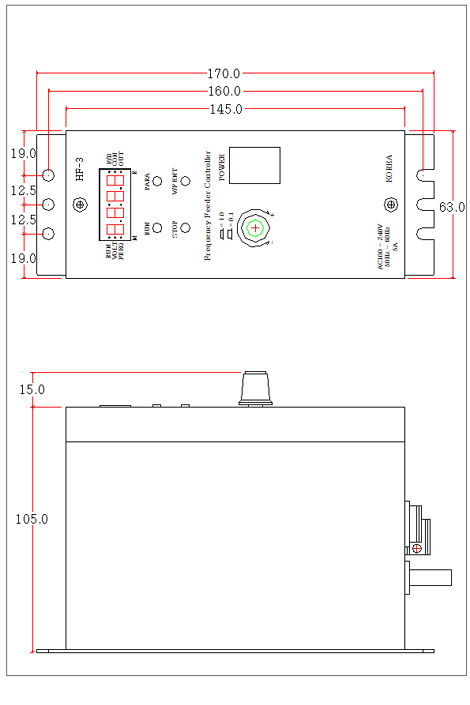

Dimension
| Item | Content | Remark | ||
| Model Name | HF-3 | HF-5 | ||
| Environmental Specification | Working Temperature | 0 ~ 55℃ | ||
| Working Humidity | 10 ~ 90% | |||
| Electrical Specification | Input Voltage | AC100V ~ 240V, 50HZ ~ 60HZ | Automatic | |
| Maximum Current | 3A | 5A | Automatic Interception | |
| Internal Fan | None | Installation | Automatic Operation | |
| Over-current Abnormality | OL Display | Power OFF | ||
| Radiator Temperature | Stop temperature at 70℃ or Over | Automatic Return | ||
| Heater Overheating Abnormality | OH Display | |||
| Output Specification | Control Method | Frequency Setting, Voltage Control | ||
| Control Element | FET | |||
| Output Voltage | 0.0V ~ 250.0V | |||
| Variable Frequency | 40HZ ~ 400HZ | |||
| Auto Tuning | 40HZ ~ 400HZ | |||
| Operation Specification | Operation Method | *Nomal input of main power *RUN / STOP control with control signals *No output line open during the RUN |
||
| Time Setting | 0.1 ~ 9.9sce | |||
| Inter-Control | Bowl Feeder / Hopper Feeder | |||
| Constant Amplitude | Installed VS50, Output voltage by Auto compensation | Automatic | ||
