Frequency controller

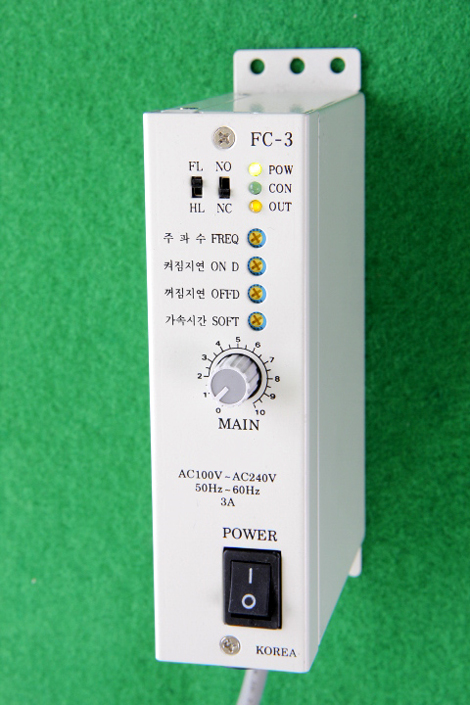

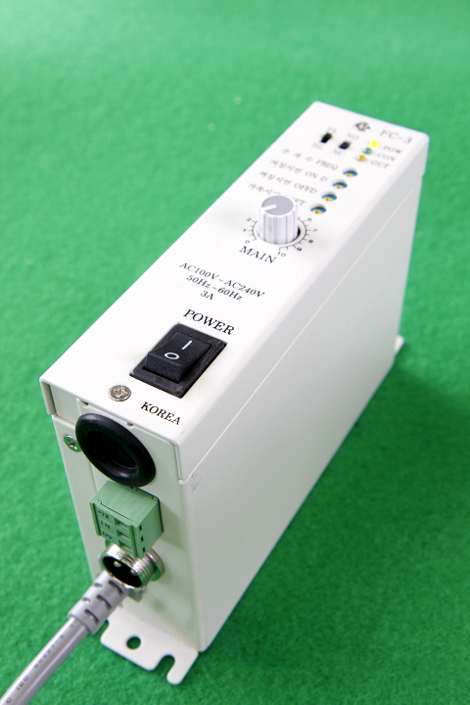

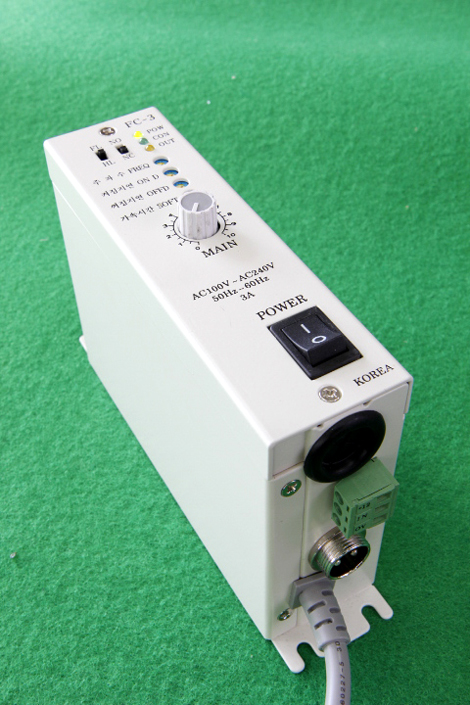

DF10C CE Approved Products FC-3 Electric Panel for Inside InstallationFC-3
본문
Features
- Power Supply Voltage : AC100V ~ AC240V
- Sensor Voltage : DC12V, 400mA

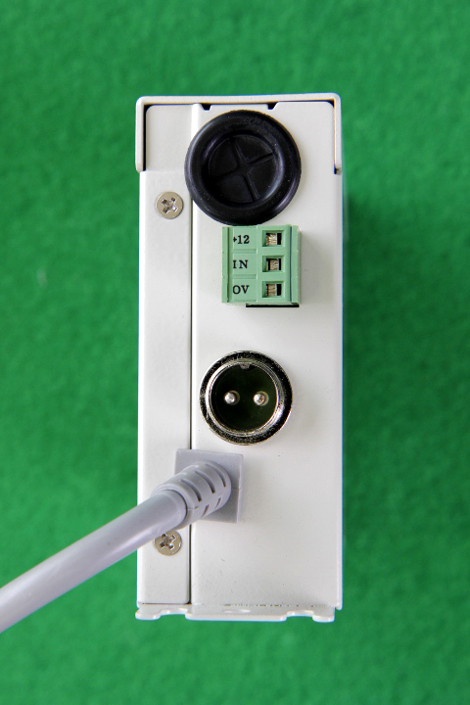

- Control Signal : COM and IN Terminal short (No-Voltage contact or TR)
- Auxiliary Relay : AC220V Output power

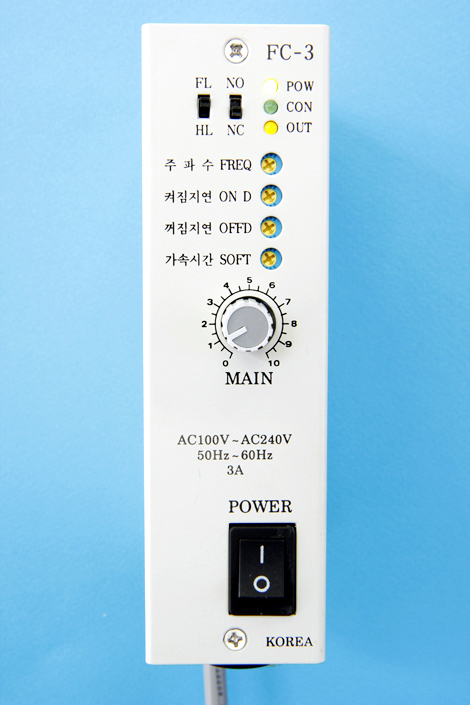

- Simplified with Operation setting switch (no parameter)

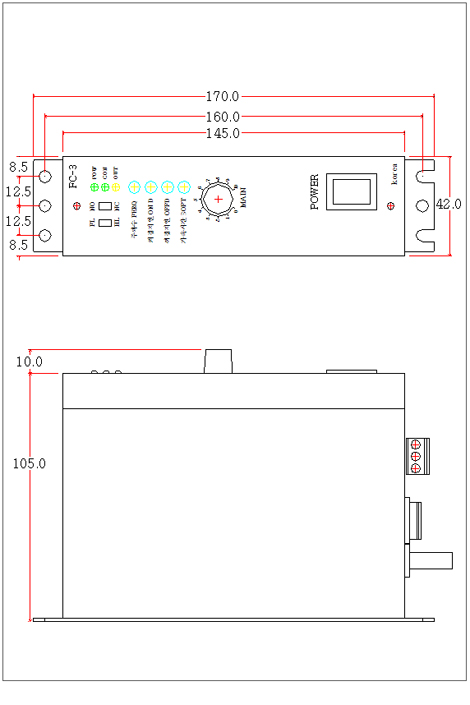

Dimension
| Item | Content | Remark | |
| Model Name | FC-3 | ||
| Environmental Specification | Working Temperature | 0 ~ 55℃ | |
| Working Humidity | 10 ~ 90% Caution for dew formation | ||
| Electrical Specification | Power Voltage | AC100V ~ 240V, 50HZ ~ 60HZ | Automatic |
| Maximum Currency | 3A | Auto shut off | |
| Radiator Temperature | Stop temperature at 70℃ or Over | Auto recovery | |
| Output Specification | Control Method | Frequency Setting, Voltage Control | |
| Control Element | FET | ||
| Output Voltage | 10% ~ 100% | ||
| Variable Frequency | 40HZ ~ 220HZ | ||
| Operation Specification | Operation Method | Use
control signal (Sensor and Contact point) |
|
| Time Setting | 0 ~ 10sec | ||
| Inter-Control | Bowl Feeder / Hopper Feeder | ||
| Constant Amplitude | Installed Vibration sensor, Output voltage by Auto compensation | Automatic | |
