Frequency controller

Power Supply Voltage : AC100V ~ AC240V
Sensor Voltage : DC24V, 200mA
Added S2 Mode Counter function (2-step speed and Complete stop)
Installed Output Line earth leakage sensing circuit
Added Automatic Compensator Function of Input variation voltage, Output voltage (ON / OFF possible)
Resonance phenomenon improve waveform, Sharply reduced noise, Show half-wave with or without dot ( . ) beside V mark

Item		Content		Remark

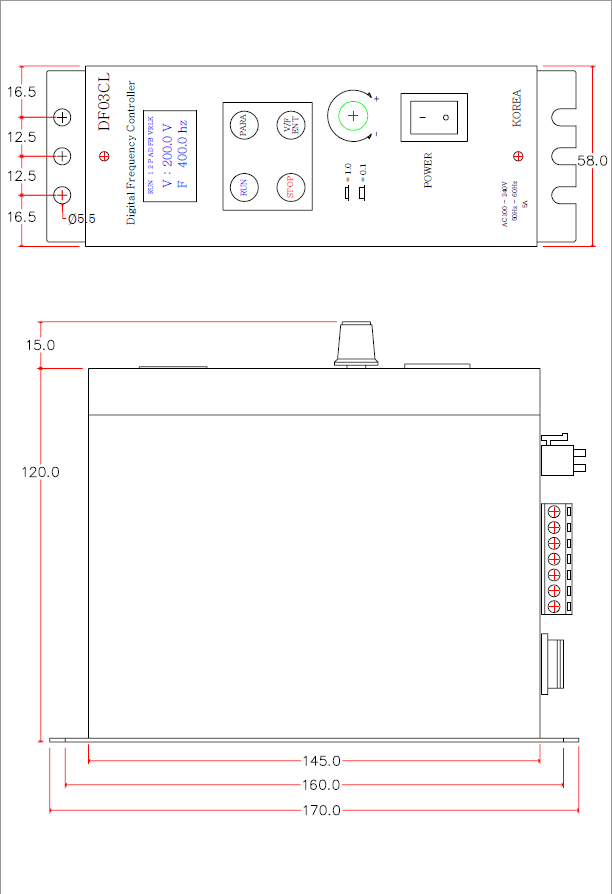

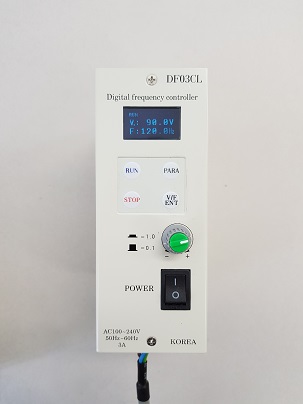

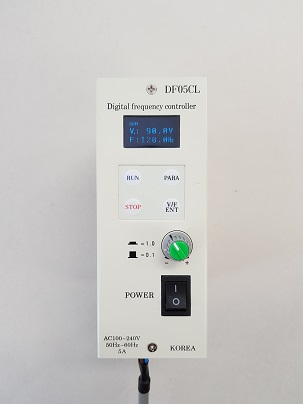

Model Name		DF03CL	DF05CL
Environmental Specification	Working Temperature	0 ~ 40℃
	Working Humidity	10 ~ 90%
Electrical Specification	Power Voltage	AC100V ~ 240V, 50HZ ~ 60HZ		Automatic
	Load Current eff	3A	5A	Overload
	Internal Temperture	Stop temperature at 70℃ or Over		Overheat
Output Specification	Control Method	Frequency Setting, Voltage Control
	Output Voltage	0.0V ~ 200.0V
	Variable Frequency	40HZ ~ 400HZ
Operation Specification	Operation Method	Operated with S1 control signal
	Time Setting	0.0 ~ 99.9sec
	Inter-Control	Bowl Feeder / Hopper Feeder
	External Control	Speed control with VR and DC 0 ~ 5V
	Contact Output	Relay contact point output (function selection)
Special Specification	Voltage Compensation	Input, Voltage fluctuation and Output Compensation		Automatic
	Constant Amplitude	Installed VS50, Output voltage by Auto compensation		Automatic
	485 Communication	PLC, PC, DFC-RS Communication		Maximum 32
