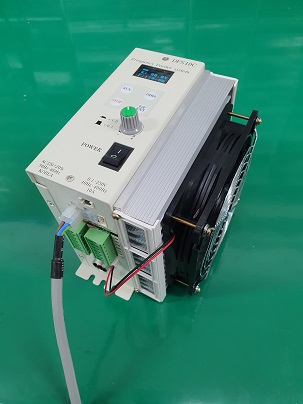

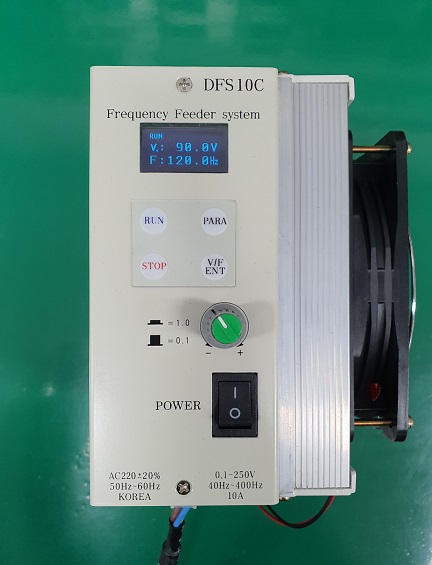

Frequency controller
DFS05 / DFS10DFS10C
본문
Features
- Power Supply Voltage : AC100V ~ AC240V
- Sensor Voltage : DC24V, 200mA
- Added S2 Mode Counter function (2-step speed and Complete stop)
- Installed Output Line earth leakage sensing circuit
- Resonance phenomenon improve waveform, Sharply reduced noise, Show half-wave with or without dot ( . ) beside V mark
- Constant Voltage Function : Maintain setting output regardless of Input voltage change
- High power factor products (DFS products 0.93 ~ 0.95, Normal Frequency Products 0.50 ~ 0.60)

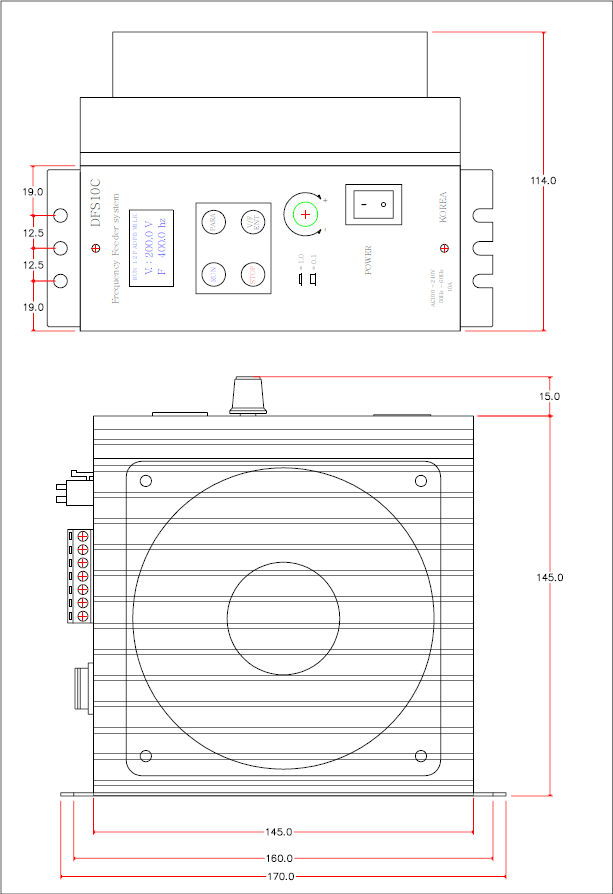

Dimension
| Item | Content | Remark | |
| Model Name | DFS10C | ||
| Environmental Specification | Working Temperature | 0 ~ 40℃ | |
| Working Humidity | 10 ~ 90% | ||
| Electrical Specification | Power Voltage | 정격전압
: AC220V ± 20%, 50HZ ~ 60HZ 사용범위 : AC100V ~ 240V, 50HZ ~ 60HZ |
Automatic |
| Load Current eff | 10A | Overload | |
| Internal Temperture | Stop temperature at 70℃ or Over | Overheat | |
| Output Specification | Control Method | Frequency Setting, Voltage Control | |
| Output Voltage | 0.0V ~ 200.0V | ||
| Variable Frequency | 40HZ ~ 400HZ | ||
| Operation Specification | Operation Method | Operated with S1 control signal | |
| Time Setting | 0.0 ~ 99.9sec | ||
| Inter-Control | Bowl Feeder / Hopper Feeder | ||
| External Control | Speed control with VR and DC 0 ~ 5V | ||
| Contact Output | Relay contact point output (function selection) | ||
| Special Specification | Static Voltage | Input Voltage Control, Maintain Fixed Voltage Output | Automatic |
| Constant Amplitude | Installed VS50, Output voltage by Auto compensation | Automatic | |
| 485 Communication | PLC, PC, DFC-RS Communication | Maximum 32 | |
