Frequency controller
DF15CL DFS10CDFS05 / DFS10
본문

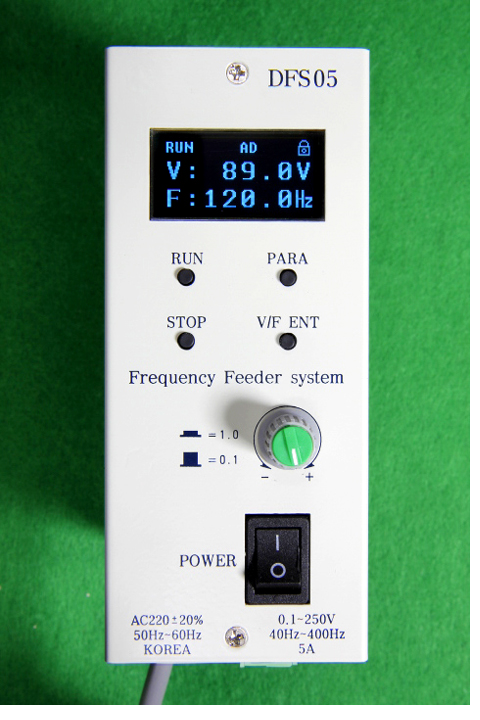

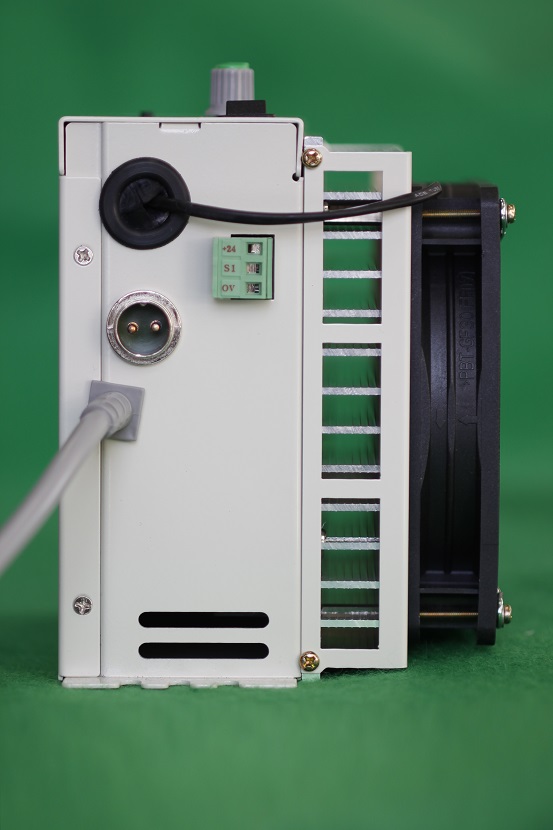

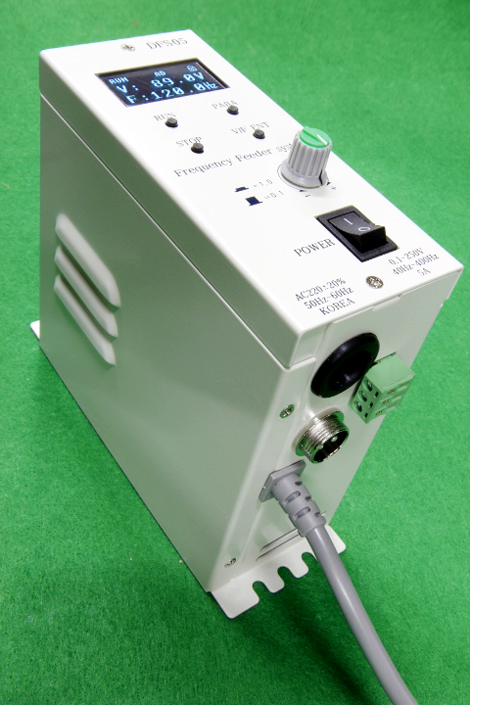

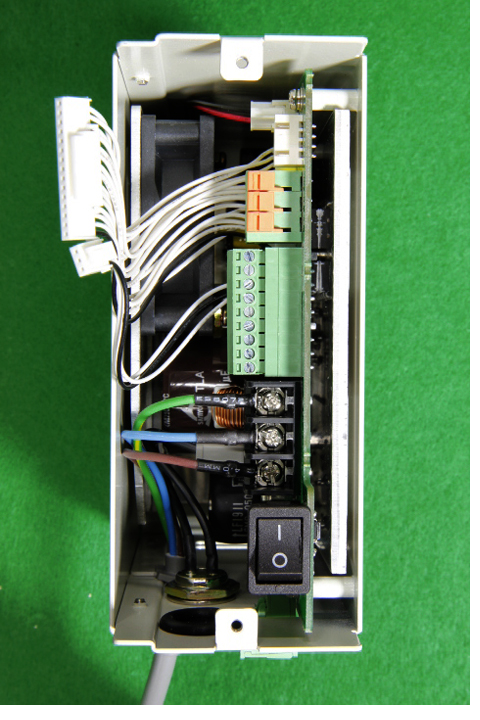

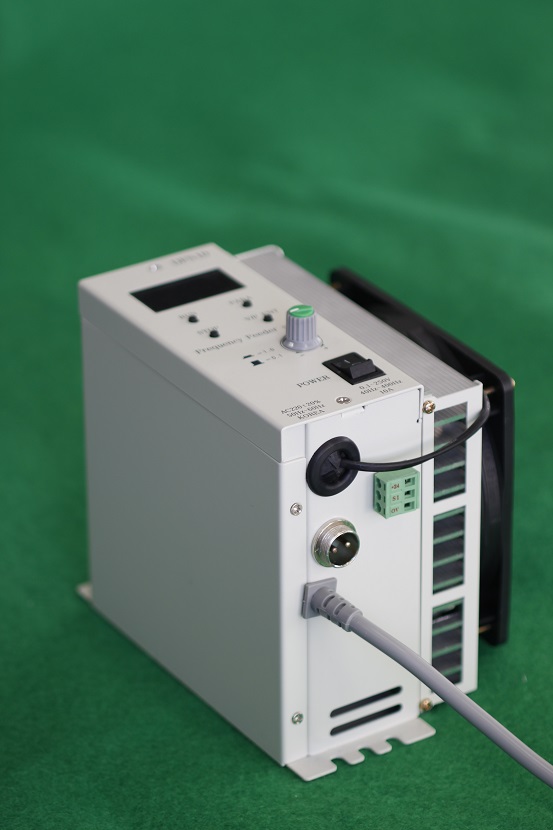

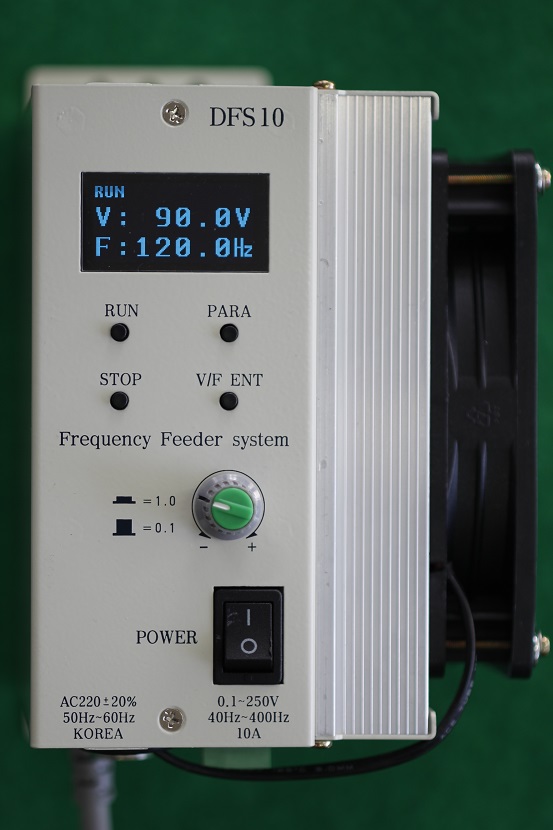

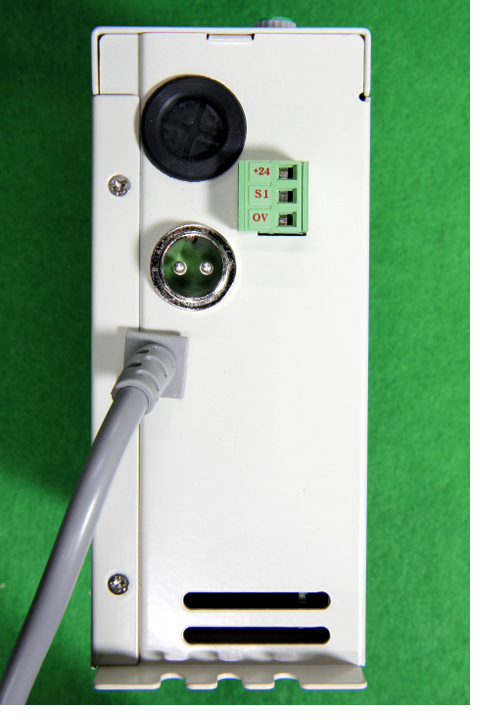

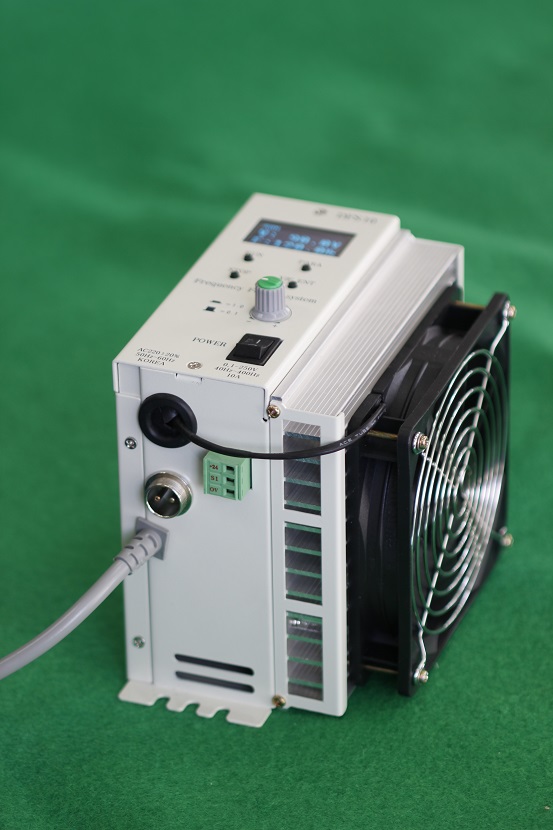

Features
- Power Supply Voltage : AC100V ~ AC240V
- Sensor Voltage : DC24V, 200mA
- Control Signal : COM and IN Terminal short (No-Voltage contact or TR)
- Auxiliary Relay : A.B.C Output contact
- Using OLED display to see Operation and Setting status
- Sensor 2 Multi-function operation (AND, OR, SET, 2-speed operation with S2, 4-channel operation)
- Output wire short detection, Circuit protection
- Added Output pulse shape selection function
Propagation : Existing output waveform
Half-wave : Resonance phenomenon improve waveform, Sharply reduced noise,
Show half-wave with or without dot ( . ) beside V mark
- Constant Voltage Function : Maintain setting output regardless of Input voltage change
- High power factor products (DFS products 0.93 ~ 0.95, Normal Frequency Products 0.50 ~ 0.60)

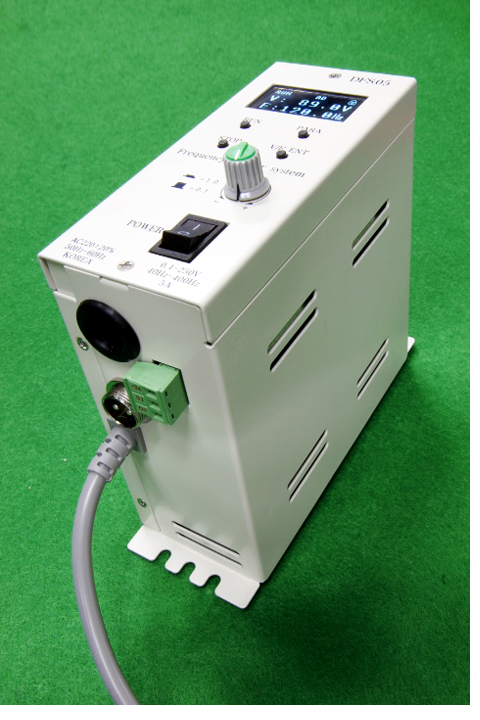

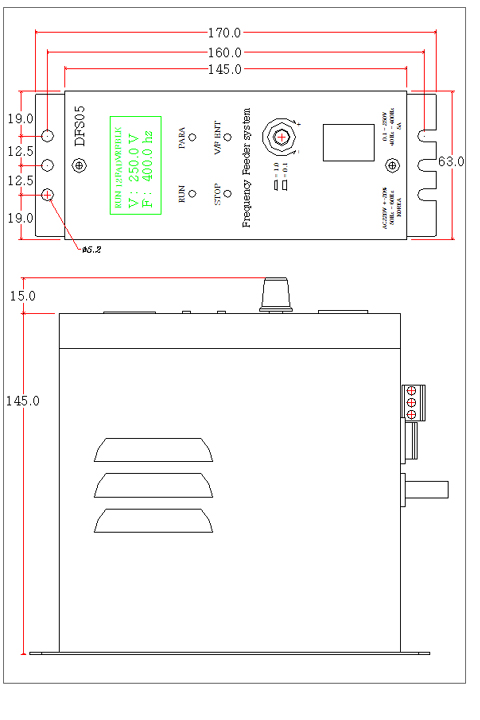

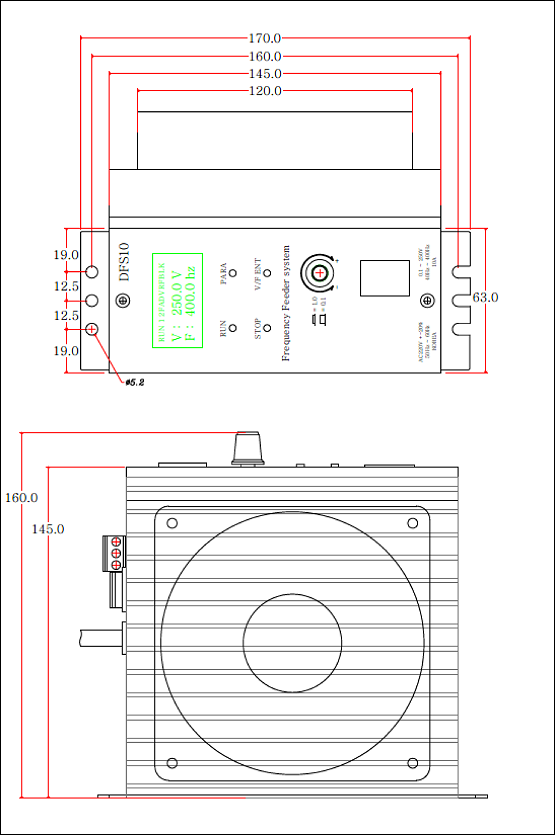

Dimension
| Item | Content | Remark | ||
| Model Name | DFS05 | DFS10 | ||
| Environmental Specification | Working Temperature | 0 ~ 55℃ | ||
| Working Humidity | 10 ~ 90% | |||
| Electrical Specification | Input Voltage | Rated Voltage : AC220V ± 20%, 50HZ ~ 60HZ Range Of Use : AC100V ~ 240V, 50HZ ~ 60HZ |
Automatic | |
| Output Load | Use the AC220V coil regardless of the input voltage | |||
| Maximum Current | 5A | 10A | Automatic Interception | |
| Radiator Temperature | Stop temperature at 80℃ or Over | Automatic Return | ||
| Output Specification | Control Method | Frequency Setting, Voltage Control | ||
| Control Element | IGBT Module | |||
| Output Voltage | 0.0V ~ 250.0V | |||
| Variable Frequency | 40HZ ~ 400HZ | |||
| Auto Tuning | 40HZ ~ 400HZ | |||
| Operation Specification | Operation Method | Control Signal Used(Sensor or Contact) | ||
| Time Setting | 0.0 ~ 99.9sec | |||
| Inter-Control | Bowl Feeder / Hopper Feeder | |||
| Special Specification | Static Voltage | Input Voltage Control, Maintain Fixed Voltage Output | Automatic | |
| Constant Amplitude | Installed VS50, Output voltage by Auto compensation | Automatic | ||
