| Item |
Content |
Remark |
| Model Name |

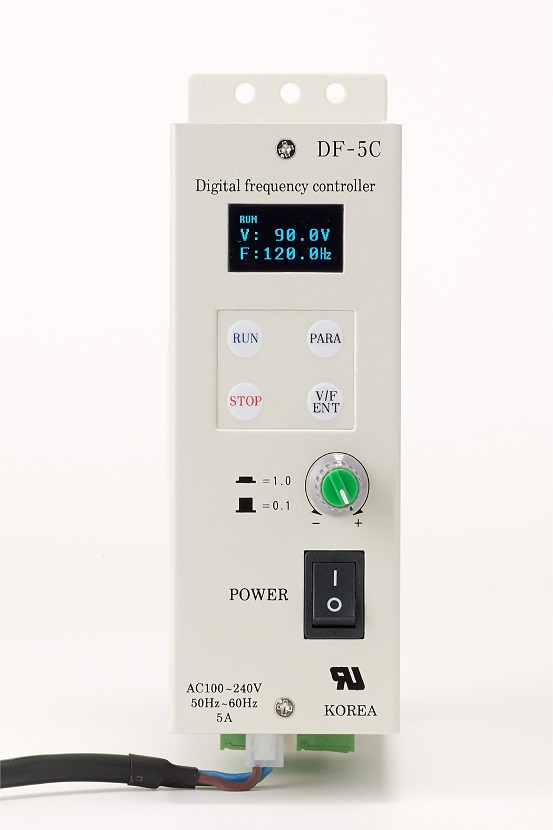

DF-5C |
|
| Environmental Specification |
Working Temperature |
0
~ 40℃ |
|
| Working
Humidity |
10
~ 90% |
|
| Electrical Specification |
Power
Voltage |
AC100V
~ 240V, 50HZ ~ 60HZ |
Automatic |
| Load Current eff |
5A |
Overload |
| Internal Temperture |
Stop
temperature at 70℃ or Over |
Overheat |
| Output Specification |
Control Method |
Frequency
Setting, Voltage Control |
|
| Output
Voltage |
0.0V
~ 200.0V |
|
| Variable
Frequency |
40HZ
~ 400HZ |
|
| Operation Specification |
Operation Method |
Operated
with S1 control signal |
|
| Time
Setting |
0.0
~ 99.9sec |
|
| Inter-Control |
Bowl
Feeder / Hopper Feeder |
|
| External Control |
Speed
control with VR and DC 0 ~ 5V |
|
| Contact Output |
Relay
contact point output (function selection) |
|
| Special Specification |
Voltage
Compensation |
Input,
Voltage fluctuation and Output Compensation |
Automatic |
| Constant
Amplitude |
Installed
VS50, Output voltage by Auto compensation |
Automatic |
| 485 Communication |
PLC, PC, DFC-RS Communication
|
Maximum
32 |
