Phase controller
PA-5 PC-5PA-7
본문
Features
- Power Supply Voltage : AC100V ~ AC240V
- Main Input Power ON / OFF Control
- Analog Circuit
- Full wave / Half-wave switch
- Accelerating time(SOFT) 0.1 / 0.5 optional function
- Setting the Limit Range by Secondary Volume
- Installed External Heat sink

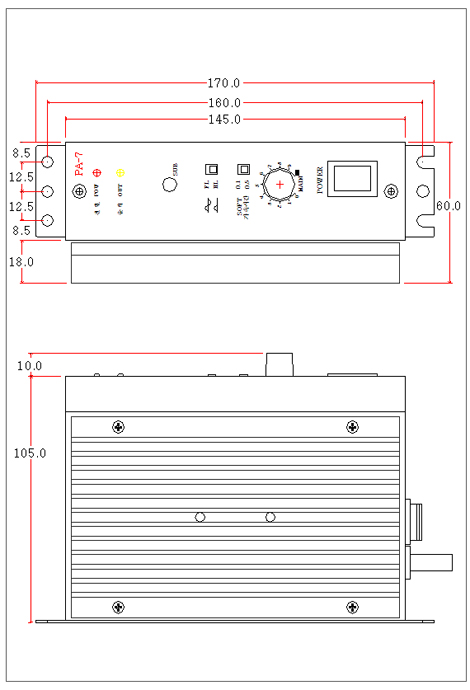

Dimension
| Item | Content | Remark | |
| Model Name | PA-7 | ||
| Environmental Specification |
Working Temperature | 0 ~ 55℃ | |
| Working Humidity | 10 ~ 90% Caution for dew formation | ||
| Electrical Specification |
Power Voltage | AC100V ~ 240V, 50HZ ~ 60HZ | No Change |
| Number of Phade | 1 | ||
| Fuse Capacity | 10A | ||
| Output Specification |
Control Method | Phase Control | |
| Control Element | TRIAC | ||
| Operation Specification |
Stopping Method | Main Power OFF | |
| Soft Start | 0.1 / 0.5sec | Selection | |
