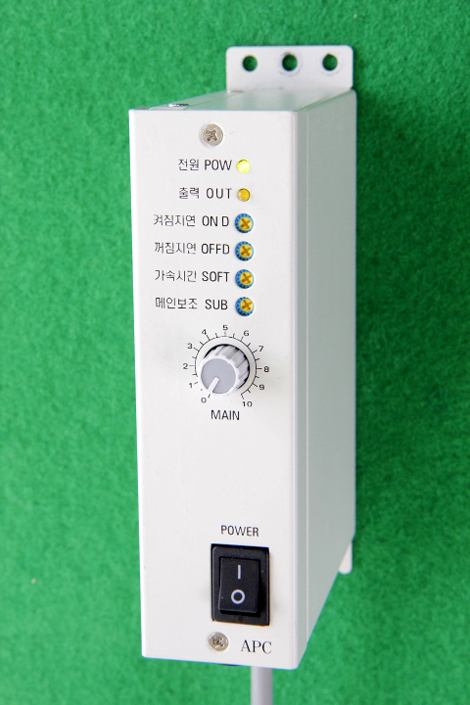

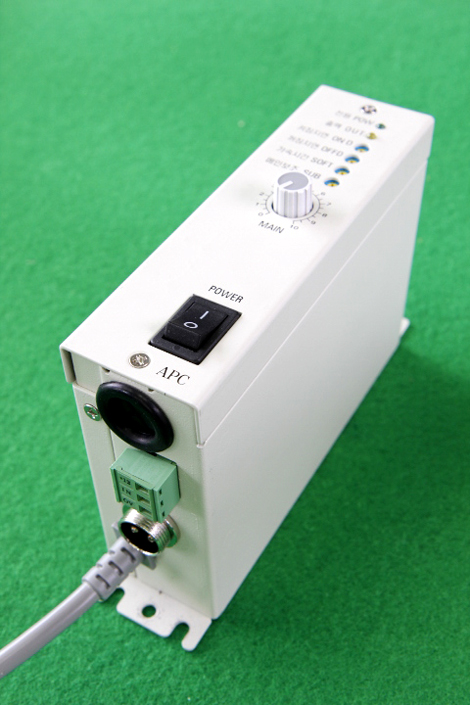

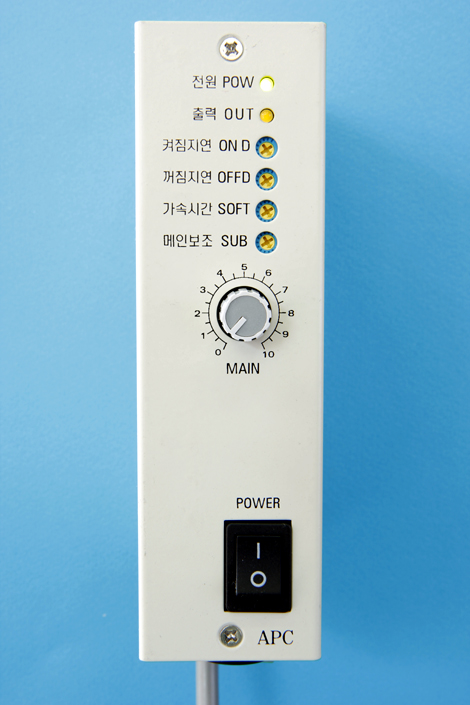

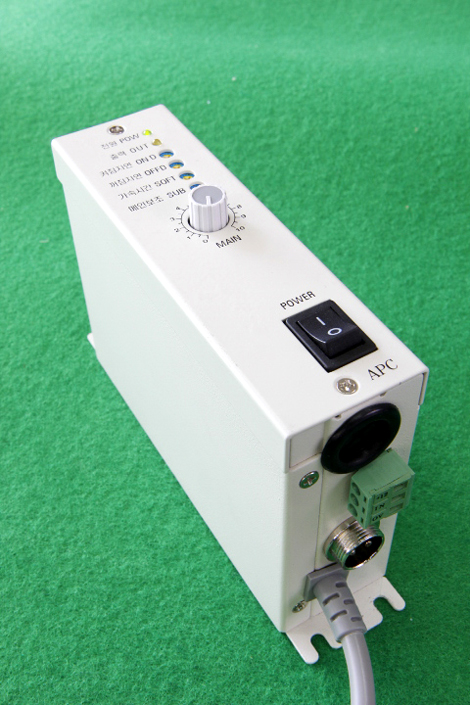

Phase controller
PC-15 DPC05APC
본문
Features
- Power Supply Voltage : AC100V ~ AC240V
- Sensor Voltage : DC12V, 400mA
- Acceleration time function reduces initial start-up shock
- Installed Variable control timer
- Invert Control Signal (NO / NC)

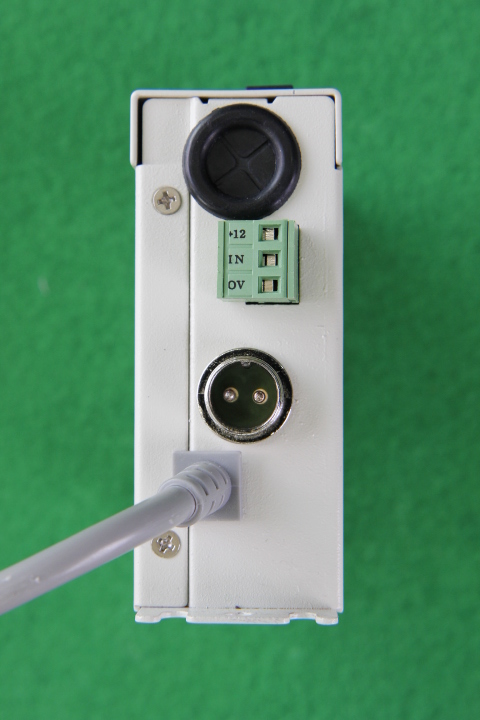

- Control Signal : COM and IN Terminal short (No-Voltage contact or TR)
- Bowl / Hopper Associated control
- Auxiliary Relay : AC220V Output power

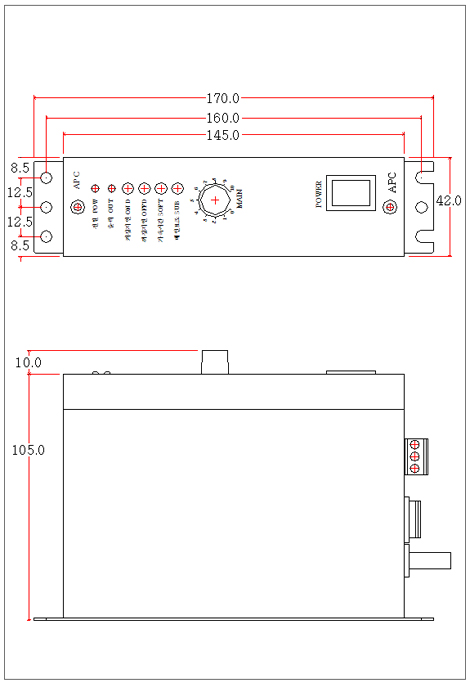

Dimension
| Item | Content | Remark | |
| Model Name | APC | ||
| Environmental Specification | Working Temperature | 0 ~ 55℃ | |
| Working Humidity | 10 ~ 90% Caution for dew formation | ||
| Electrical Specification | Power Voltage | AC100V ~ 240V, 50HZ ~ 60HZ | Automatic |
| Number of Phade | 1 | ||
| Fuse Capacity | 5A | ||
| Output Specification | Control Method | Phase Control | |
| Control Element | TRIAC | ||
| Operation Specification | Operation Method | Use control signal | |
| ON D | 0 ~ 10sec | Variable | |
| OFF D | 0 ~ 10sec | Variable | |
| Soft Start | 0 ~ 10sec | Variable | |
